ReorderableListView

A scrollable list of controls that can be reordered.

Tip

By default, each child control (from controls) is draggable using an automatically created drag handle (see show_default_drag_handles). To customize the draggable area, use the ReorderableDraggable to define your own drag handle or region.

Inherits: ListView

Properties

Events

Examples#

Live example

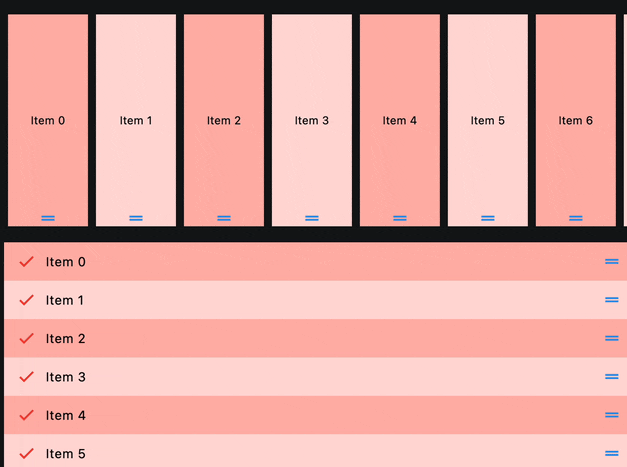

Horizontal and Vertical#

import flet as ft


def main(page: ft.Page):
    # the primary color is the color of the reorder handle
    page.theme = page.dark_theme = ft.Theme(
        color_scheme=ft.ColorScheme(primary=ft.Colors.BLUE)
    )

    def handle_reorder(e: ft.OnReorderEvent):
        e.control.controls.insert(e.new_index, e.control.controls.pop(e.old_index))

    get_color = lambda i: (
        ft.Colors.ERROR if i % 2 == 0 else ft.Colors.ON_ERROR_CONTAINER
    )

    page.add(
        # horizontal
        ft.ReorderableListView(
            expand=True,
            horizontal=True,
            on_reorder=handle_reorder,
            controls=[
                ft.Container(
                    content=ft.Text(f"Item {i}", color=ft.Colors.BLACK),
                    bgcolor=get_color(i),
                    margin=ft.Margin.symmetric(horizontal=5, vertical=10),
                    width=100,
                    alignment=ft.Alignment.CENTER,
                )
                for i in range(10)
            ],
        ),
        # vertical
        ft.ReorderableListView(
            expand=True,
            on_reorder=handle_reorder,
            controls=[
                ft.ListTile(
                    title=ft.Text(f"Item {i}", color=ft.Colors.BLACK),
                    leading=ft.Icon(ft.Icons.CHECK, color=ft.Colors.RED),
                    bgcolor=get_color(i),
                )
                for i in range(10)
            ],
        ),
    )


ft.run(main)

horizontal-and-vertical

Custom drag handle#

See this.

Properties#

anchor class-attribute instance-attribute #

anchor: Number = 0.0

The relative position of the zero scroll offset.

auto_scroller_velocity_scalar class-attribute instance-attribute #

auto_scroller_velocity_scalar: Number | None = None

The velocity scalar per pixel over scroll.

It represents how the velocity scale with the over scroll distance. The auto-scroll velocity = (distance of overscroll) * velocity scalar.

build_controls_on_demand class-attribute instance-attribute #

build_controls_on_demand: bool = True

Whether the controls should be built lazily/on-demand, i.e. only when they are about to become visible.

This is particularly useful when dealing with a large number of controls.

cache_extent class-attribute instance-attribute #

cache_extent: Number | None = None

The viewport has an area before and after the visible area to cache items that are about to become visible when the user scrolls.

Items that fall in this cache area are laid out even though they are not (yet) visible on screen. The cache_extent describes how many pixels the cache area extends before the leading edge and after the trailing edge of the viewport.

The total extent, which the viewport will try to cover with children, is cache_extent before the leading edge + extent of the main axis + cache_extent after the trailing edge.

The cache area is also used to implement implicit accessibility scrolling on iOS: When the accessibility focus moves from an item in the visible viewport to an invisible item in the cache area, the framework will bring that item into view with an (implicit) scroll action.

clip_behavior class-attribute instance-attribute #

clip_behavior: ClipBehavior = HARD_EDGE

The content will be clipped (or not) according to this option.

controls class-attribute instance-attribute #

controls: list[Control] = field(default_factory=list)

The controls to be reordered.

first_item_prototype class-attribute instance-attribute #

first_item_prototype: bool = False

Whether the dimensions of the first item should be used as a "prototype" for all other items.

If True, their height or width will be the same as the first item.

footer class-attribute instance-attribute #

footer: Control | None = None

A non-reorderable footer item to show after the controls.

header class-attribute instance-attribute #

header: Control | None = None

A non-reorderable header item to show before the controls.

horizontal class-attribute instance-attribute #

horizontal: bool = False

Whether the controls should be laid out horizontally.

item_extent class-attribute instance-attribute #

item_extent: Number | None = None

Defines the extent that the controls should have in the scroll direction.

Specifying an item_extent is more efficient than letting the controls determine their own extent because the scrolling machinery can make use of the foreknowledge of the controls extent to save work, for example when the scroll position changes drastically.

mouse_cursor class-attribute instance-attribute #

mouse_cursor: MouseCursor | None = None

The cursor for a mouse pointer when it enters or is hovering over the drag handle.

padding class-attribute instance-attribute #

padding: PaddingValue | None = None

The amount of space by which to inset the controls.

reverse class-attribute instance-attribute #

reverse: bool = False

Whether the scroll view scrolls in the reading direction.

For example, if the reading direction is left-to-right and horizontal is True, then the scroll view scrolls from left to right when reverse is False and from right to left when reverse is True.

Similarly, if horizontal is False, then the scroll view scrolls from top to bottom when reverse is False and from bottom to top when reverse is True.

show_default_drag_handles class-attribute instance-attribute #

show_default_drag_handles: bool = True

Whether to show default drag handles for each controls item.

If True: on desktop platforms, a drag handle is stacked over the center of each item's trailing edge; on mobile platforms, a long press anywhere on the item starts a drag.

The default desktop drag handle is just an Icons.DRAG_HANDLE wrapped by a ReorderableDraggable. On mobile platforms, the entire item is wrapped with a [ReorderableDelayedDragStartListener].

To customize the appearance or layout of drag handles, wrap each controls item, or a control within each of them, with a ReorderableDraggable, [ReorderableDelayedDragStartListener], or your own subclass of ReorderableDraggable. For full control over the drag handles, you might want to set show_default_drag_handles to False.

Example
ft.ReorderableListView(
    expand=True,
    show_default_drag_handles=False,
    controls=[
        ft.ReorderableDraggable(
            index=i,
            content=ft.ListTile(
                title=f"Draggable Item {i}",
                bgcolor=ft.Colors.GREY if i % 2 == 0 else ft.Colors.BLUE_ACCENT,
            ),
        )
        for i in range(10)
    ],
)

Events#

on_reorder class-attribute instance-attribute #

on_reorder: EventHandler[OnReorderEvent] | None = None

Called when a controls item has been dragged to a new location/position and the order of the items gets updated.

on_reorder_end class-attribute instance-attribute #

on_reorder_end: EventHandler[OnReorderEvent] | None = None

Called when the dragged controls item is dropped.

on_reorder_start class-attribute instance-attribute #

on_reorder_start: EventHandler[OnReorderEvent] | None = None

Called when a controls item drag has started.
